HRS-932S
Handi Rescue System: HRS-932s "Stubby" Shear-Head-unit
HRS-932S

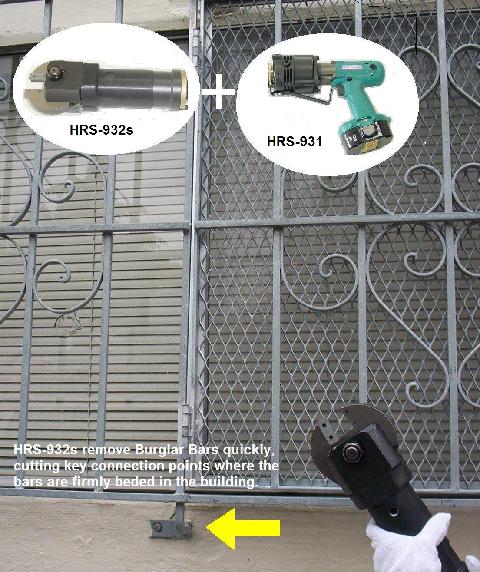

HRS-932s remove Burglar Bars quickly, cutting key connection points where the bars are firmly beded in the building.
・Connected to and powered by HRS-931DF Pump.
・Designed for cutting in tight spots.
・Short cutter jaws with special alloy inserted.
・Total weight is less than 22 lbs (10 kg).
・Yet generates 18,000 lbs (78.4kN) force.
HRS-932 "Stubby" quickly cuts:
・Burglar Bars
・Steel Gates, Metal-Fences
・Padlocks, Bicycle-Locks
・Chain
・Hasps
・Wire
In situations like:
・Forcible entry
・Breaching
・Intervention in Civil Disturbances
・Collaped Buildings
click images below to enlarge

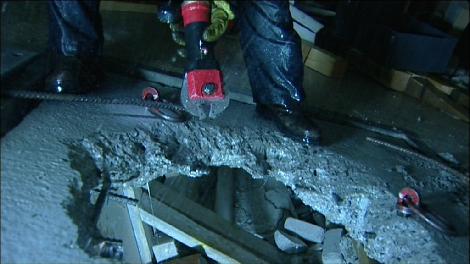

HRS-932s DEMO 1
HRS-932s DEMO 2
■Specifications of HRS-932s
Max. cutting force (at the center) 78.4 kN (8 t) / 17,640 lbs
Max. cutting opening 26 mm / 1.0"
Dimensions (L × W × H) 328 × 130 × 104 mm
12.9" × 5.1" × 4.1"
Weight (including a battery) 5.5 kg / 12.1 lbs
Max. cutting capacity
Rebar, 620 N/mm² (90,000 psi) D16 mm / 5/8"
Round Bar, 400 N/mm² (58,000 psi) D16 mm / 5/8"
Tube, 400 N/mm² (58,000 psi) D25 × t3.2 mm / D1.0 × t0.13"
Square Pipe, 400 N/mm² (58,000 psi) 25 × 25 × t3.2 mm / 1" × 1" × t0.13"
